Papuc - za de imbinare Buldozer CATERPILLAR D9H

Marca utilaj:

CATERPILLAR

Tip utilaj:

Buldozer

model:

D9H

Papuc - za de imbinare

CTHZ0109E1610G

Greutate:

44.35 Kg

Detalii:

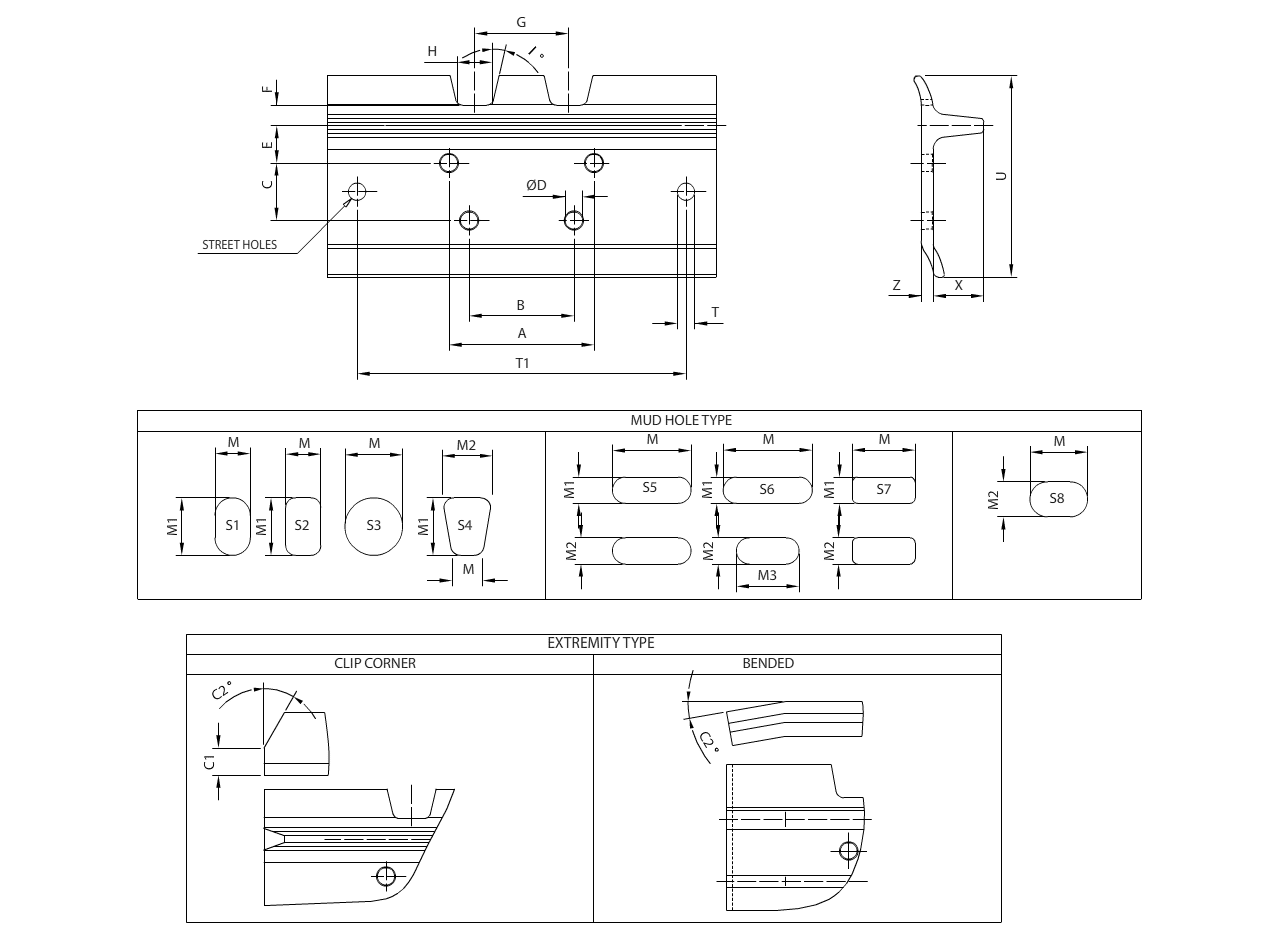

Mud Holes Mud holes shape	Extremity Type Type of extremity	Street Holes Street Holes	A 231,14 Bolt hole pattern
B 184,3 Bolt hole pattern	C 52,37 Bolt hole pattern	C1 Clip corner height	C2º Clip corner angle
øD 26,7 Bolt hole diameter	E 67 Hole pattern position	F 38 Notches position	G 168 Notches pitch
H 65 Notches width	Iº 15° Notches angle	M Mud holes width	M1 Mud holes width
M2 Mud holes width	M3 Mud holes width	M4 Mud holes width	M5 Mud holes width
M6 Mud holes width	M7 Mud holes width	øT Pads bolt hole	T1 Pads pattern
T4 Pads pattern	U 301 Profile lenght	X 87,5 Grouser height	Z 20,5 Plate thickness

Compatibil cu urmatoarele utilaje:

CATERPILLAR

D9G 66A-5855-8245	D9G 66A-8246-UP	D9G DUALF 90J-1-85	D9G DUALR 91J-86-UP
D9G SXSL 29N-1-UP	D9G SXSR 30N-1-UP	D9H 90V-1-UP	D9H 97V-1-UP
D9H 98V-1-UP

CROSS REFERENCE (Coduri originale):

BERCO	CR2671/24
CATERPILLAR	3T8558
CATERPILLAR	8S1724
CATERPILLAR	8S1727
ITM	Z01091E0N0610F
VPI	VCR2671/24
